多模态智慧感知决策芯片

-S300

多模态智慧感知决策芯片

PIMCHIP-S300芯片是苹芯科技基于存算一体技术打造的多模态智慧感知决策AI芯片。其搭载基于SRAM的存算一体计算加速单元,让计算在存储器内部发生,有效减少计算过程中的数据搬运,使核心计算单元的能效产生几十上百倍的提升,达到国际领先指标并实现技术突破。芯片具备AI算力整合、多模态融合感知、跨领域智慧决策、超低功耗、极速响应等特点。PIMCHIP-S300可应用在智慧工业、智慧医疗、智能可穿戴设备等不同领域,致力于为合作伙伴提供高能效、小面积、低功耗、低成本的解决方案,为多元化应用场景智慧赋能。

功能点

AI算力整合

多模态融合感知

跨领域智慧决策

超低功耗唤醒

自研异构架

-S300

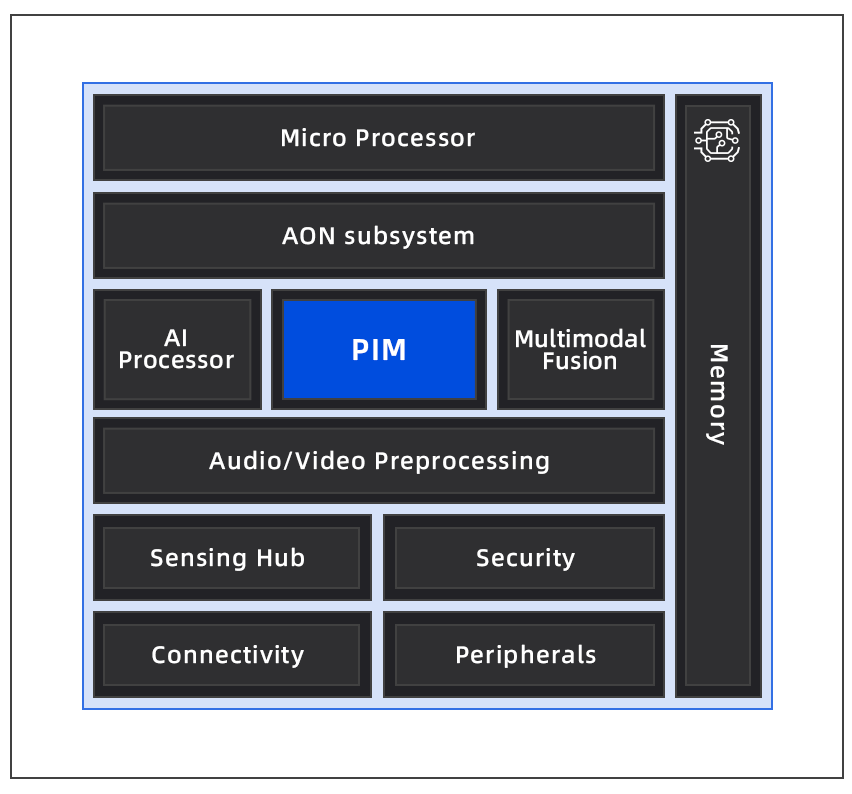

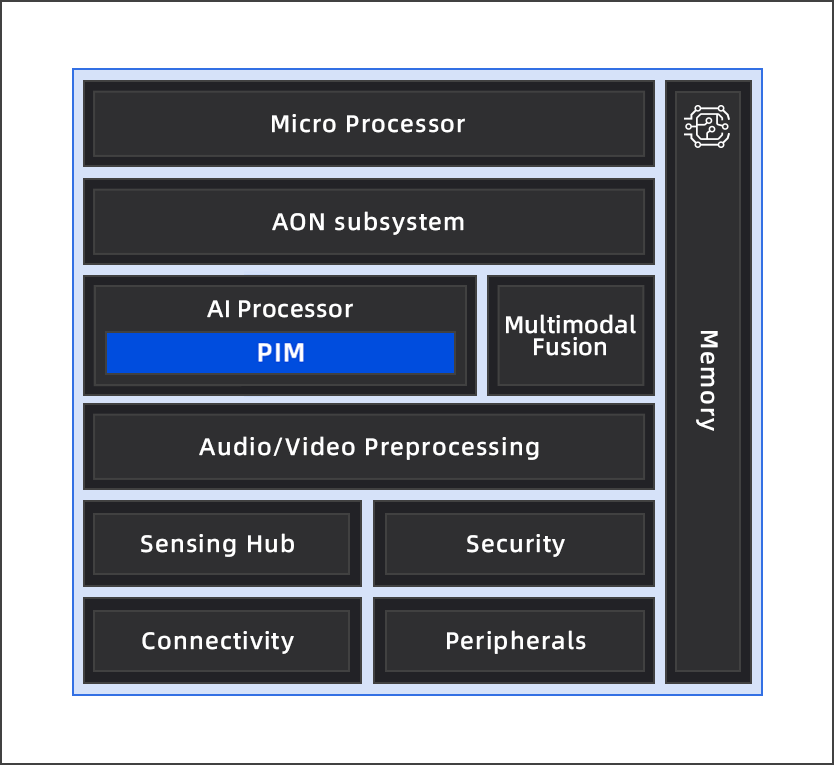

芯片架构

-S300

芯片参数

mputing
System
CPU

MCU with FPU/MAC for control panel,300 DMIPS

NPU

Neural Networks and CV Acceleration for

computing panel. 0.5 Tops, support int4/8/16

DSP

Audio/Vision Signal processing and

Sensor fusion,100 GMAC

VIdeo
Subsystem
2D Graphics

Scaler、Crop、Zoom、CSC,Blending

Preview stream, 240 * 160@24fps,up to 480 * 320

Snapshot stream,Typical 720P

Video IN

1 * DVP in, resolution up to 2560 * 1440,

8 bits/Pixel,RGB565、YUV422、RGB888

Video Out

4-Wire SPI out ; 240 * 160@24fps,

up to 480 * 320,RGB888

Audio
Subsystem
PDM

* 4

I2S

* 2

HWA

VAD/FFT Accelerator

AON
Subsystem
Low Power

100uW-5mW

Trigger

Customizable Voice,Adjustable Motion,

Temperature,Voltage,Touch

Storage
SRAM

support system SRAM, up to 1792KB

PSRAM

Up to 32MB

Flash

support Nor-flash,up to 32Mb

Others
Connectivities

UART * 4,SPI * 2,I2C * 4

2x SD HC support SDR104/DDR50 and SDIO3.0 eMMC 4.5

Ethernet: Interface:MII/RMII/RGMII

Data Rate:10Mbps/100Mbps/1000Mbps

Peripheral

DMA * 3,Timer * 4,RTC * 1,WDT * 5

ADC * 1 12bit@1MSPS,PWM * 3,GPIO * 40

Security

support SM2/3/4/, AES ,SHA ,RSA ,TRNG,OTP

Turnkey
Solution

RTOS, Middleware,Model Zoo,

One-click AI deployment solution,

One-click binary generation and downloading solution
